Material:

• galvanized steel;
• EPDM rubber connectors;
• rubber gasket;
• mounting brackets made of galvanized steel.

Product characteristics:

• clever design of the internal components to minimise air resistance;
• 45 mm long connection fitted with a gasket;
• sheet metal connection via rivets;
• quick and easy fitting of the duct with connectors without the need for additional seals;
• EPDM rubber connectors;
• 20 mm wide swivel mounting brackets, which can be fixed on 2 sides of the box;
• right-sided version.

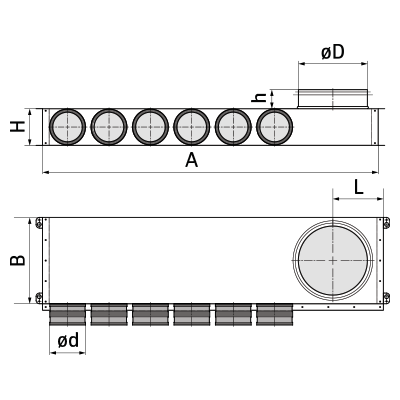

	Number of connectors	øD [mm]	ød [mm]	A [mm]	B [mm]	H [mm]	h [mm]	L [mm]
SR-RKN6.P 75/160	6	160	75	768	200	85	45	100
SR-RKN8.P 75/160	8	160	75	958	200	85	45	100
SR-RKN10.P 75/160	10	160	75	1148	200	85	45	100
