Description Dimensions Download

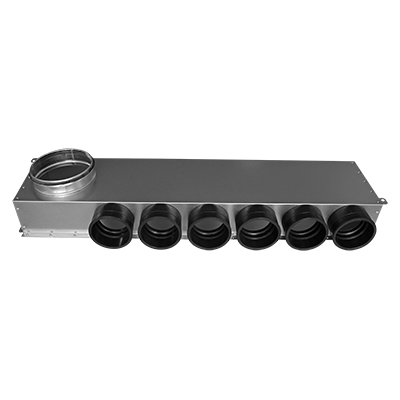

Material:

• galvanized steel;
• rubber o-ring;
• rubber gasket;
• mounting brackets made of galvanized steel.

Product characteristics:

• clever design of the internal components to minimise air resistance;
• 45 mm long connection fitted with a gasket;
• the sheet is joined with special seams, which do not damage the zinc layer;
• connecting a pipe to the nozzles is quick thanks to an innovative solution - inserting a rubber o-ring into a special slot on the nozzle;
• box-mounted and gasket-fitted nozzles (also with inlet connection);
• 20 mm wide swivel mounting brackets, which can be fixed on 2 sides of the box;
• left-sided version.

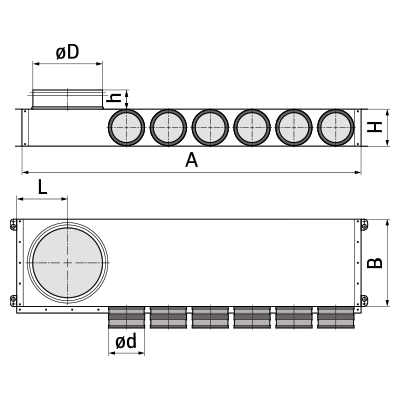

	Number of connectors	øD [mm]	ød [mm]	A [mm]	B [mm]	H [mm]	h [mm]	L [mm]
SR-RKN6.L 75/160	6	160	75	768	200	85	45	100
SR-RKN8.L 75/160	8	160	75	958	200	85	45	100
SR-RKN10.L 75/160	10	160	75	1148	200	85	45	100
