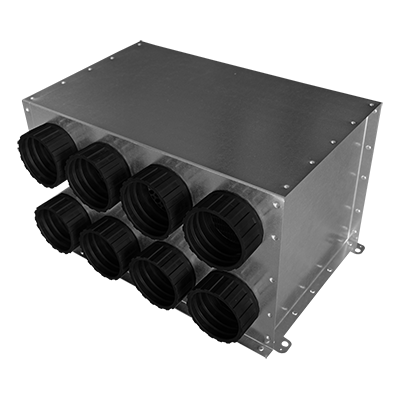

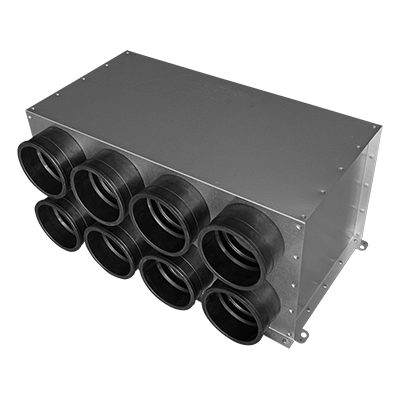

Material:

• galvanized steel;
• EPDM rubber connectors;
• rubber gasket;
• mounting brackets made of galvanized steel.

Product characteristics:

• 45 mm long connection fitted with a gasket;
• sheet metal connection via rivets;
• quick and easy fitting of the duct with connectors without the need for additional seals;
• EPDM rubber connectors;
• 20 mm wide swivel mounting brackets, which can be fixed on 2 sides of the box.

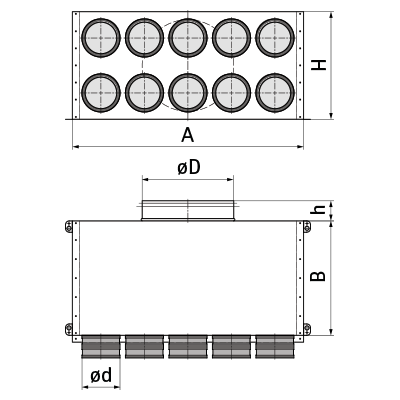

	Number of connectors	øD [mm]	ød [mm]	A [mm]	B [mm]	H [mm]	h [mm]
SR-RPD8  75/160	8 (2×4)	160	75	400	250	235	45
SR-RPD10  75/200	10 (2×5)	200	75	495	250	235	45
SR-RPD12  75/200	12 (2×6)	200	75	590	250	235	45
